on & off grid solar system

5500W 5.5KW نظام الطاقة الشمسية الهجين 5kva نظام تخزين الطاقة الشمسية المنزلية

5.5KW نظام الطاقة الشمسية الهجين
  • النظام (موك):

    10
  • الجهد الناتج:

    230VDC±10%
  • شهادة:

    TUV.ETL.SO.CE
  • مهلة:

    15-20Days
  • الدفع:

    T/T.L/C.Paypal.Western Union
  • ضمان:

    8 Years


ما هو النظام الشمسي الهجين؟

تولد أنظمة الطاقة الشمسية الهجينة الطاقة بنفس طريقة النظام الشمسي المتصل بالشبكة العامة ولكنها تستخدم محولات وبطاريات هجينة خاصة لتخزين الطاقة لاستخدامها لاحقًا. تمكن هذه القدرة على تخزين الطاقة معظم الأنظمة الهجينة من العمل أيضًا كمصدر طاقة احتياطي أثناء انقطاع التيار الكهربائي ، على غرار نظام UPS.


معلمات المنتج

غرض
نموذج

وصف

كمية
1 لوحة شمسية
نصف خلية كفاءة عالية
لوحة أحادية 450 وات (أو حسب الحاجة)
حسب الطلب
2 العاكس
5.5KW الهجين العاكس1
3 بطارية
AGM / LiFePO₄ بطارية حمض الرصاص
حسب الطلب
4 تصاعد الدعم
سقف مائل / مسطح ، أرضي
1
5 الأجزاء الأخرى كابل/ موصل / اختيار الزبون
1


التعبئة

off grid system

المشاريع

off grid system


منتجات ذات صله
IS-030S/040S/050S Micro inverter
Safer with rapid shutdown compliance Plug & Play, easy installation MPPT per module, 96.7%+ peak efficiency WiFi integrated, direct communication with APP.Module level monitoring IP67 protection, adapt to outdoor use 25 years design lifetime and 12 years warranty

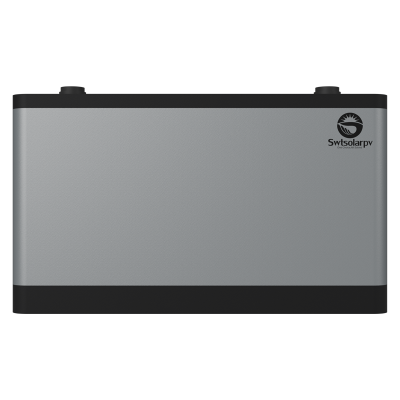

12V 100AH battery 48v 100ah lithium ion battery
أمان فائق: كيمياء فوسفات حديد الليثيوم تزيل خطر الانفجار أو الاحتراق بسبب الشحن الزائد عالي التأثير أو حالة ماس كهربائي
3.2V 100Ah Cell lithium ion and lithium polymer battery
The LiFePO4 Battery Cell is a high-performance, long-lasting, and versatile energy storage solution with advanced safety features. Specification Typical capacity:100Ah @ 0.5C discharge Discharge current 1.0C with 2.5V cut off. (25±2)℃ Typical Voltage:3.2V Discharge current 0.5C with 2.5V cut off. (25±2)℃ AC Impedance Resistance:≤0.50mΩ Standard charge and discharge: Charge/Discharge Current 1C/1C Pulse Charge/Discharge Current (30s):3C/3C The maximum charge current of the battery does not exceed 1C under 0℃~45℃. Charging Temperature:0℃~55℃ Reference Continuous/Pulse Charge/Discharge Current Map Storage Temperature:- 20~60℃ Battery can work at a specified temperature range with capacity loss intolerance. Cycle Life:≥6000 times Typical dimension:160*50*116mm Weight:1.98±0.50kg
3.2V 160Ah Cell
The LiFePO4 Battery Cell is a high-performance, long-lasting, and versatile energy storage solution with advanced safety features. Specification Typical capacity:160Ah @ 0.5C discharge Discharge current 0.5C with 2.5V cut off. (25±2)℃ Typical Voltage:3.2V Discharge current 0.5C with 2.5V cut off. (25±2)℃ AC Impedance Resistance:≤0.50mΩ Standard charge and discharge: Charge/Discharge Current 1C/1C Pulse Charge/Discharge Current(30s):0.5C/0.5C The maximum charge current of the battery does not exceed 1C under 0℃~45℃. Charging Temperature:0℃~60℃ Reference Continuous/Pulse Charge/Discharge Current Map Storage Temperature:- 20~60℃ Battery can work at a specified temperature range with capacity loss intolerance. Typical dimension:174*54*153mm Weight:3.00±0.10kg Cycle Life at 25℃:≥6000 cycle @1C/1C

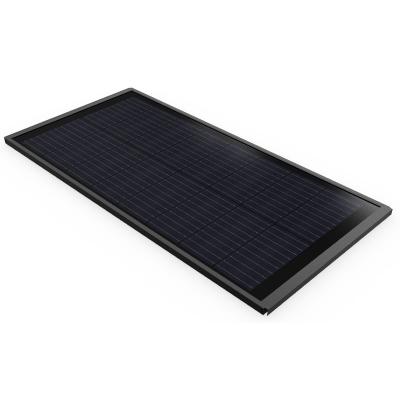

BIPV, 90W, Fixed style, Solar roof tile
Photovoltaic building integration is a solar photovoltaic power generation system that is designed, constructed and installed at the same time as the physical building and forms a perfect combination with the building, which is also known as “building material” solar photovoltaic building. It not only has the function of power generation, but also has the function of building components and building materials, and even enhances the aesthetics of the building, forming a perfect unity with the building.
3.2V 302Ah Cell
The LiFePO4 Battery Cell is a high-performance, long-lasting, and versatile energy storage solution with advanced safety features. Specification Typical capacity:302Ah @ 0.5C discharge Typical Voltage:3.2V Discharge current 0.5C with 2.5V cut off. (25±2)℃ AC Impedance Resistance:0.18±0.05m Ω Standard charge and discharge: Charge/Discharge Current 0.5C/1C Discharging Temperature:-30℃~60℃ Reference Continuous/Pulse Charge/Discharge Current Map Storage Temperature:- 20~45℃ Battery can work at a specified temperature range with capacity loss intolerance. Cycle Life:≥6000 times Size:173.9*71.7*207.2mm Weight:>5.44Kg

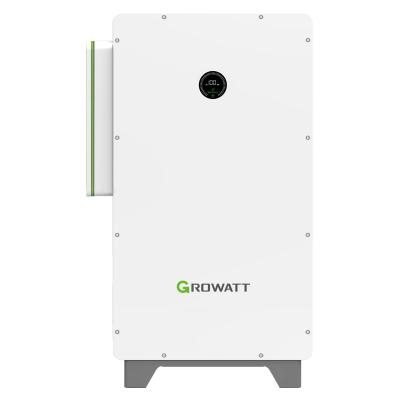

ESS Split Phase inverter
This split-phase high voltage hybrid inverter is for North American market which is a high quality smart hybrid solar inverter. The hybrid solar controller inverter includes a transformer, together with solar panels and battery storage systems, make up a hybrid solar power system, which is suitable for large-capacity home energy storage systems in North America. It can meet the battery voltage range of 85~400V and has multiple application modes such as self-consumption, peak shaving and valley filling, and backup power supply. Combined with smart display, it makes operation and maintenance easier. Bring you the best hybrid inverter experience.
solar 17KW -25KW system
نظام PV Hybrid على الشبكة الشمسية 17KW -25KW
