on & off grid solar system

51.2H LiFePo4 بطارية ليثيوم أيورن 100ah 5kwh بطارية ليثيوم حزمة لتخزين الطاقة المنزلية

تخزين الطاقة المنزلية 51.2H LiFePo4 ليثيوم أيورن
  • نوع:

    Off-Grid


ميزة:
أداء جيد في درجات الحرارة العالية
تقنية فوسفات حديد الليثيوم الآمنة
كثافة عالية للطاقة وكفاءة التحويل
مدى الحياة: 2000 دورة
صديقة للبيئة ، بدون أي معادن ثقيلة
كاملة مع نظام إدارة البطارية المدمج
يمكن استخدام شواحن التيار المتردد والشمسية لهذا النظام
انخفاض معدل التفريغ الذاتي
سهل التركيب ، يمكن أن يكون في خزانة قياسية أو يكون مثبتًا على الحائط
حماية تلقائية مدمجة للشحن الزائد والتفريغ الزائدظروف درجات الحرارة الزائدة
كثافة طاقة عالية 120-130 كيلوواط / كجم ، حتى معدل التفريغ العالي ، مع الحفاظ على قدرة طاقة عالية.
مرونة متزايدة: يتيح التصميم المعياري النشر
تفريغ جيد عالي السعر واستقرار ممتاز
تصميم رقاقة ذكي ، سعة تخزين ممتازة للبطارية

التطبيقات :

البطارية قابلة للتطبيق للأغراض الصناعية أو التجارية أو السكنية

يتم توصيل وحدات أو وحدات البطارية من Wh إلى Mwh لنظام الطاقة المتجددة

نظام تخزين الطاقة

تخزين الطاقة الشمسية

إنارة الشوارع بالطاقة الشمسية

مركبة كهربائية (EV)

طبي

اتصالات

الروبوتية

يو بي إس

غرض
تخصيص
نوع
بطارية ليثيوم
الجهد االكهربى
51.2 فولت
تصنيف القدرة
100 أمبير (0.2 درجة مئوية / 25 ° درجة مئوية) (الحد الأدنى: 98 أمبير)
طاقة
4200 واط
تعمل مجموعة الجهد
42 فولت - 58.4 فولت (نموذجي: 51.2 فولت)
جهد الشحن
56.0 فولت ± 1.0 فولت
تفريغ قطع التيار الكهربائي
42 فولت ± 2.0 فولت
التيار الشاحن
20 أ
تيار الشحن (الحد الأقصى)
30 أ
التيار المستمر
50 أ
تيار التفريغ (الحد الأقصى)
100 أ
أشهر التفريغ الذاتي
≤3.5٪

التعبئة

lithium iron battery

المشاريع

lithium iron battery

منتجات ذات صله
3.2V 304Ah Cell
The LiFePO4 Battery Cell is a high-performance, long-lasting, and versatile energy storage solution with advanced safety features. Specification Typical capacity:304.0 Ah @ 0.5C discharge Typical Voltage:3.2V Discharge current 0.5C with 2.5V cut off. (25±2)℃ AC Impedance Resistance:≤0.5mΩ Standard charge and discharge: Charge/Discharge Current 0.5C/1C Pulse Charge/Discharge Current (30s):2C/2C The maximum charge current of the battery does not exceed 1C under 0℃~45℃. Recommended SOC window:10%~90% Charging Temperature:0℃~60℃ Reference Continuous/Pulse Charge/Discharge Current Map Discharging Temperature:-30℃~60℃ Reference Continuous/Pulse Charge/Discharge Current Map Storage Temperature:- 20~45℃ Battery can work at a specified temperature range with capacity loss intolerance. Typical dimension:173.8*71.5*207.4mm Weight:5.49±0.3kg Cycle Life at 25℃:≥6000 cycles @250A/250A

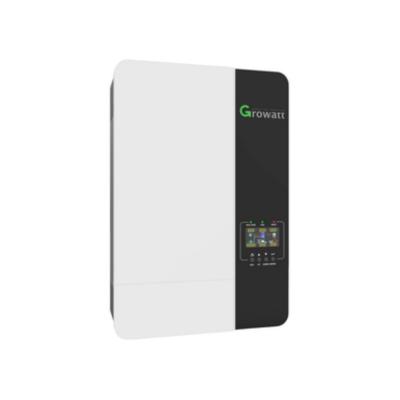

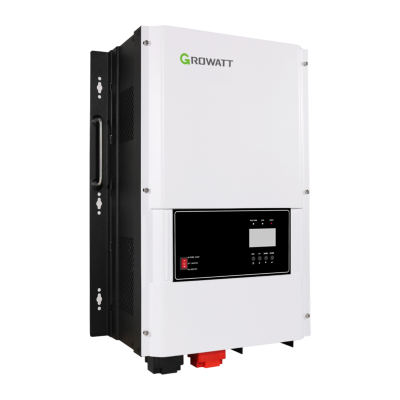

3kva off grid inverter high frequency
النظام الشمسي خارج الشبكة (خارج الشبكة ، مستقل) هو البديل الواضح للنظام المرتبط بالشبكة. بالنسبة لأصحاب المنازل الذين يمكنهم الوصول إلى الشبكة ، عادة ما تكون أنظمة الطاقة الشمسية خارج الشبكة غير واردة.
30W Solar Home Light System
SG1230W Series Solar Lighting System Solar Panel: 18V/30W Lead-acid Battery: 12V/17AH Solar Controller: 12V/5A SG1230W Series Solar Lighting System is the newly design solar solution to provide the safety and security of having light when you need it most, the system kit with battery and controller built-in, and the PV panel with 6m cable which made with socket, it is the plug and play system, easily install.

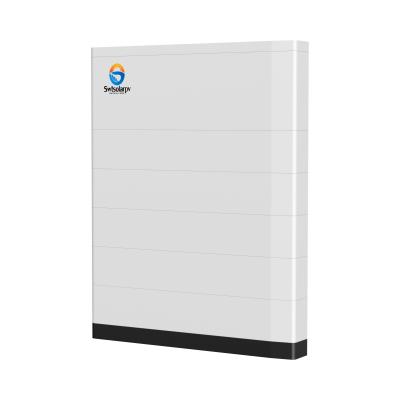

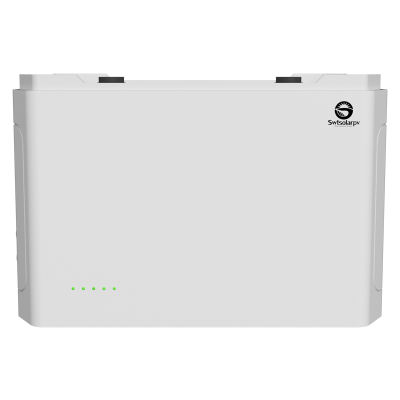

51.2V 100Ah LiFePO4 Battery
A sleek and space-saving solution for your energy storage needs. With its compact design and easy installation, it seamlessly blends into any environment. Whether in your home, office, or commercial space, our wall-mounted unit provides reliable and efficient energy storage,empowering you to optimize energy usage and reduce waste.
51.2V 100Ah 5.12Kwh battery 48v 100ah lithium ion battery
Rechargeable Lithium Batteries use safe lithium cell LIFEPO4. Lithium-ion batteries are rechargeable lithium-ion 48v 100ah lithium ion battery
3.2V 280Ah Cell
The LiFePO4 Battery Cell is a high-performance, long-lasting, and versatile energy storage solution with advanced safety features. Specification Typical capacity:280.0 Ah @ 0.5C discharge Discharge current 0.5C with 2.5V cut off. (25±2)℃ Typical Voltage:3.2V Discharge current 0.5C with 2.5V cut off. (25±2)℃ AC Impedance Resistance:≤0.25mΩ Standard charge and discharge: Charge/Discharge Current 1C/1C Pulse Charge/Discharge Current (30s):2C/2C The maximum charge current of the battery does not exceed 1C under 0℃~45℃. Charging Temperature:0℃~60℃ Reference Continuous/Pulse Charge/Discharge Current Map Storage Temperature:- 20~45℃ Battery can work at a specified temperature range with capacity loss intolerance. Cycle Life:≥6000 times Typical dimension:173.8*71.5*207.4mm Weight:5.20±0.22kg

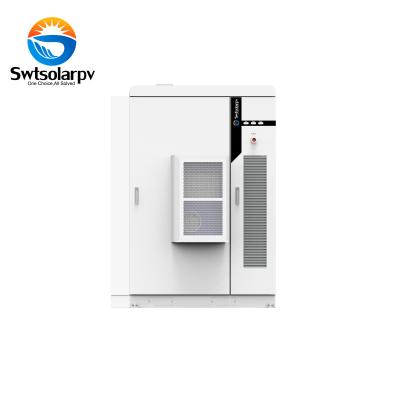

All-In-One Single phase 9kw solar off grid system
An efficient, safe, and intelligent home energy storage solution, featuring a convenient modular battery design and integrated inverter, EMS, and UPS management system. Seamlessly switch between power sources, remotely control your energy needs, and customize intelligent operating plans. This is a off grid generator and battery system. It is a fully-integrated LiFePO4 battery system for residential usages. The system combines the most advanced battery management system with super power supply capacity to provide sustainable & green energy for your working and family usages all day.
