51.2V Stackable Lithium Battery Benefit
High-Voltage All-In-One Stackable ESS Parameters Table
| Model | SBS2.56K3-GL3 | SBS5.12K3-GL3 |
| Nominal Voltage(Vdc) | 51.2 | 51.2 |
| Nominal Capacity(Wh) | 2560 | 5120 |
| Working Voltage Range(Vdc) | 129.6~516.6 | 129.6~350.4 |
| Charge Voltage(Vdc) | 56.16 | 56.16 |
| Nominal Charge/Discharge Current(A) | 25 | 50 |
| Max.Charge/Discharge Current(A) | 50 | 100 |
| Peak Current(A) | 100@3sec | 200@3sec |
| Series Connection | 3-10 pcs | 3-6 pcs |
| Cycle Life | 6000@80%DOD, 25℃/0.5C | |
| Structure | ||
| Power Module Dimensions(mm)Weight(kg) | 600*210*250/14 | 610*225*250/15 |
| Battery Module Dimensions(mm)Weight(kg) | 600*210*160/27 | 610*225*250/52 |
| Lampstand Module Dimensions(mm)Weight(kg) | 600*210*90/5 | 610*225*90/5.5 |
| Top Cap Module Dimensions(mm)Weight(kg) | 600*210*50/2.5 | 610*225*50/3 |
| IP Rating | IP65 | |
| Installation | Stacked | |
| Working Environment | ||
| Charge Working Temperature(C) | 0~55 | |
| Discharge Working Temperature(C) | -20~60 | |
| Altitude(M) | ＜2500 | |
| Humidity(RH) | 5~95%( w/o condensing) | |
| Communication | ||
| Communication Port | RS485,CAN | |
| Display | SOC status indicator, LED indicator | |
| Certification | ||
| CB,IEC62619,CE-EMC,CE-GPSD,UKCA, UL1973,UL9540A,EN62040,IEC62040; UN38.3,MSDS | ||

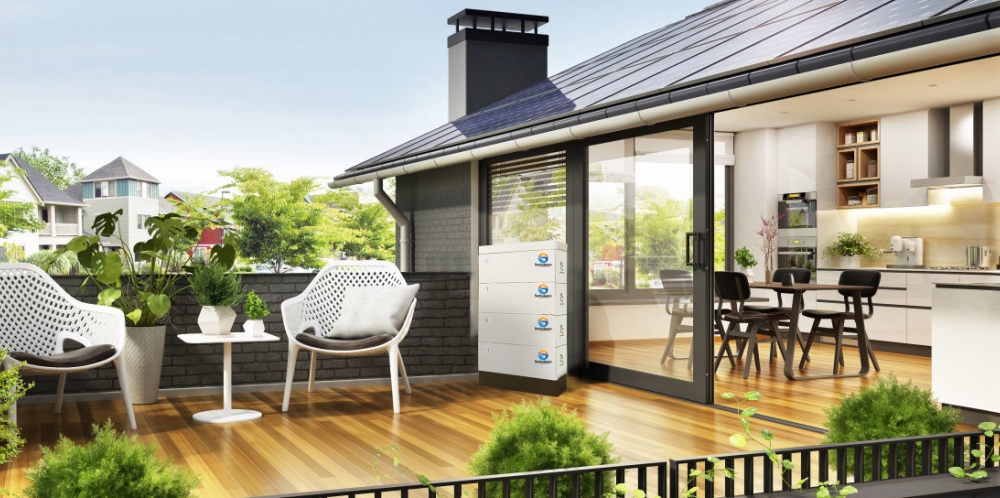

Power up your energy storage game with compact size,
lightweight design, and effortless installation of standardized modules,
leveraging the advantages of high voltage.Effortlessly customize battery combinations to meet your energy storage needs.
